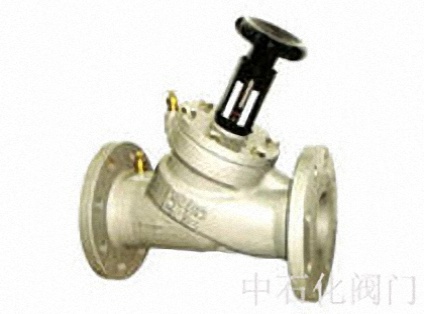

Static balance valve is a liquid pipeline flow control valve, its role is convenient and accurate regulation of the flow, effectively solve the problems of uneven heating and cooling, water imbalance in the pipe network system. Static balance valve not only has a good regulating performance, but also has the function of opening and opening degree, widely used in heating and air conditioning systems and other needs to regulate the flow of liquid pipeline system. Because the static balance valve is also provided with flow measurement of small valve, the intelligent instrument can be used for a one-time commissioning, the total system of water control in a reasonable range, to achieve the balance of the network, thus saving energy significantly.
Note: parameters are for reference only, or are not full. Valve can be used in accordance with the requirements of different pressure, material, diameter, drive, etc.. Specific please contact or online advisory contact.
Working pressure: PN16 temperature range: 0-120
Connection: flange PN16 flow error: from 100% to 50% open degree + 5%
|
DN
|
D
|
L
|
Hmax
|
|
32
|
100
|
185
|
275
|
|
40
|
110
|
205
|
275
|
|
50
|
125
|
235
|
305
|
|
65
|
145
|
295
|
345
|
|
80
|
160
|
315
|
395
|
|
100
|
180
|
355
|
430
|
|
125
|
210
|
400
|
283
|
|
150
|
240
|
480
|
285
|
|
200
|
295
|
600
|
467
|
|
250
|
355
|
730
|
480
|
|
300
|
410
|
850
|
515
|
|
350
|
470
|
980
|
1035
|
1 linear flow characteristic, when the opening is large, the flow rate is large, and the opening hours is small;
2 the valve body adopts the direct current structure, the fluid resistance is small;"
3 there is a percentage of the opening, the number of open loop and the product of the pitch of the valve stem, that is, the opening value;
4 import and export of valves with pressure small valve, and intelligent instruments with hose connection, you can easily measure the pressure before and after the valve and the flow through the valve;
5 sealing surface with PTFE, good sealing performance, long life.
